Disassembling ES 125 REQ Plus - stuck spindle bearing

M

MikeJW

Member
Joined
Oct 28, 2024
Messages
8
Hi - seeking some guidance from the good folk in the FOG. I need to replace a broken fan on my ES 125 but cannot remove the bearing cover for some reason as the spindle bearing seems well and truly stuck to the spindle (in the red circle of the image). I'm pretty sure there are no retaining screws left, and I have removed the spindle washer and circlip and soaked it in WD40, but the armature spindle seems well and truly stuck to the spindle bearing. I've tried various sizes of persuader, and have attempted to heat the alloy cover with a small blow torch, but it seems stuck fast. Any (sensible) suggestions would be welcome!

Mike


Attachments

  • IMG_0865.jpeg
    1 MB · Views: 29
If the end of that exposed shaft is threaded, stick a bolt in it and give it a few good straight inline whacks with a hammer. No need to be delicate about it.

Thanks luvmytoolz - I'll give it a try and report back, hopefully with some success

...no joy, even with a club hammer. I'll purchase a puller and if that fails it will have to be consigned to the bin unfortuantely, which is a shame as it was my first every Fest

@MikeJW what kind of puller did you use? Can't see how the puller arms would get a grip ... assuming you are pulling the plate/bearing off the armature?

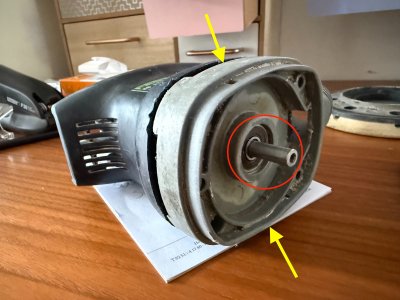

I'm also curious where the puller arms were placed. I assume it was in the approximate locations of the yellow arrows?

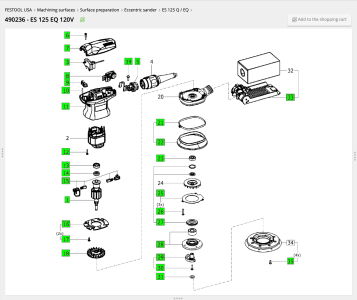

Here's an exploded view drawing and parts list that may be of some help when replacing the brushes. Be kind with that aluminum bearing plate (item 20) as it's longer available.


Attachments

  • ES 125 EQ copy.jpeg
    ES 125 EQ copy.jpeg
    1.7 MB · Views: 11
  • ES 125 EQ Exploded View.png
    ES 125 EQ Exploded View.png
    440.7 KB · Views: 9

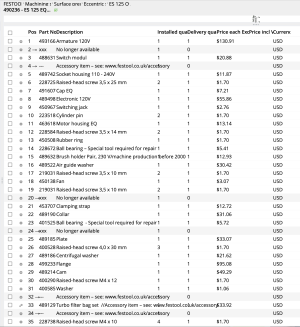

  • ES 125 EQ Parts List.png
    ES 125 EQ Parts List.png
    488.1 KB · Views: 9
I ended up using the same approach as shown in the video around the 20:00 mark. I don't have a press, so I cut a hole in 3/4" plywood, passed the armature through ("upside down" so the upper fan was resting on the plywood). Then a couple taps on the end of the armature with a rubber mallet released the bearing.
