Porter Cable Type Guide Adapter

[grbmds]

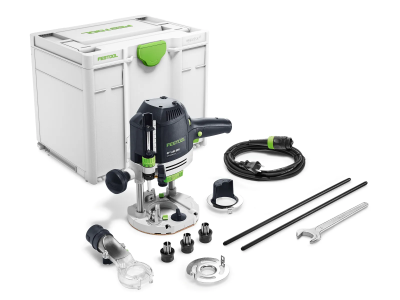

Is the adapter in the foreground of the above picture the adapter for Porter Cable type guides? I haven't used the 1400 for template routing but plan to. Just wanted to make sure that the adapter shown was to mount PC guides to be sure didn't need to buy one.



[luvmytoolz]

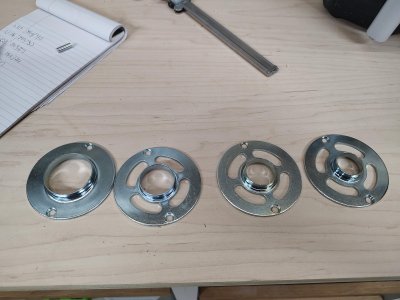

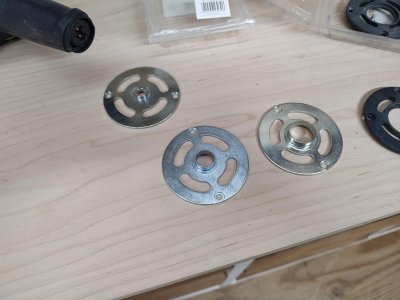

If you're meaning the template guide rings that screw into each other, no. That's a standard 30mm template guide or copying ring (flange underneath).

You want this one if so:

Copying Ring for Screw In Guides for OF 1400

Copying ring for screw in guides for both the 493566 & 494627

www.festool.com.au



[grbmds]

If you're meaning the template guide rings that screw into each other, no. That's a standard 30mm template guide or copying ring (flange underneath).

You want this one if so:

Copying Ring for Screw In Guides for OF 1400

Copying ring for screw in guides for both the 493566 & 494627

www.festool.com.au

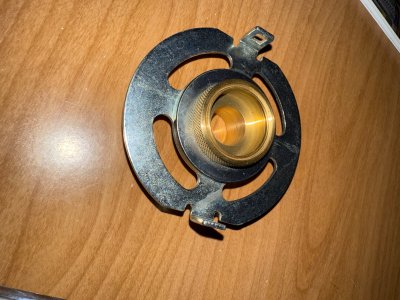

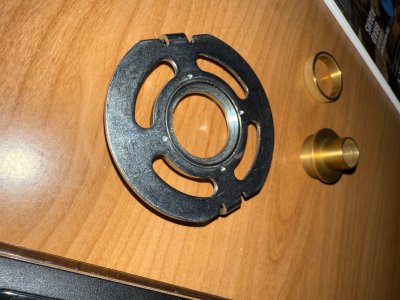

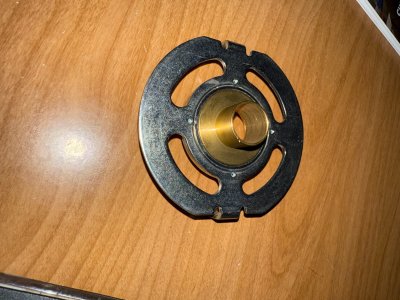

Actually, what you describe is what I have. I tried my PC guides with the threaded collar and they fit. Possibly I bought that separately when I bought the router. I just haven't used it.



[rmhinden]

There have been many discussions on the FOG that the OF 1400 is not ideal for template routing. As I understand it, the way the template attaches means it can't be reliably centered. The OF 1010 is much better for template routing because the template guide can be centered.

Bob



[grbmds]

I'm aware, but, based on some experience a friend of mine had, it didn't seem to be a problem, although I guess for some it has.



[Crazyraceguy]

If you're meaning the template guide rings that screw into each other, no. That's a standard 30mm template guide or copying ring (flange underneath).

You want this one if so:

Copying Ring for Screw In Guides for OF 1400

Copying ring for screw in guides for both the 493566 & 494627

www.festool.com.au

This is one of those situations where it is beneficial that members fill in the location section of their profile.
The scope of delivery is different in North America. The PC bushing adaptor is supplied as standard here, whereas the 30mm unit is standard in Europe (and probably the rest of the world)

I would add a bit of a caution for @grbmds ....Be aware of the possibility that the collet nut can make contact with the inside of the PC type bushings. This depends a little on the brand of bushing. The "specific dimensions" are about the OD and thread/nut, not the ID. Some brands are smaller inside and a deep plunge can make contact. This will loosen the bushing, as it spins out of the nut. It doesn't happen with all bushings, but look out for it.
