Fein "Suction" Shroud and the Vecturo and/or MM?

TinyShop

Member
Joined
Feb 5, 2017
Messages
661
Even though I'd rather chew on broken glass than have to reach out to Fein USA (or Fein Germany, for that matter) for help, I found myself earlier today needing to ask for some assistance from Pittsburgh.

Why broken glass? Well, every interaction I've ever had with Fein over the last couple of years (since before even becoming a customer) has gone like today's did. Nowhere. Usually they just don't bother to answer my emails. Today, however, was an exception.

What I encountered is sure to produce confused facial expressions from all who read past this point.

You see, what I discovered is that the email server at Fein USA is configured in such a way as to prevent Joe public (hey, that's me!) from transmitting an email with hyperlinks, attachments and/or embedded images. This restriction presents a serious problem when the information you seek is the part number for something you've only seen a couple of images of online. On its own, this hurdle wouldn't have been such a big deal. However, when this encounter turns out to be enigmatic of literally every interaction you've ever had with Fein, you may be better equipped to understand why I immediately went from zero to ten.

This was about more than a part number, after all.

Realizing this was going to take some effort, and not wanting to add insult to injury by picking up the phone only to be met by someone on the other end who has no idea what I'm talking about (another experience common to my past interactions with Fein), I took a few minutes to fire off an email that was as critical of Fein the company as it was insistent of my need for assistance. Wise by now to the email server's whims, I made sure not to include any links or images in this transmission.

In short order (remarkable speed given my past experience) I heard back from a person of the Customer Service Manager persuasion. His reply was brief but failed to include the kind of on-your-feet thinking I was longing for. So, taking it upon myself to do his job for him, I next offered a couple of workarounds, all aimed at my being able to one way or another send him the links. The last thing I wanted to do was to play "telephone" with a long web address, actually three long web addresses. His response back, also brief, was so devoid of what one thinks of as the act of providing "Customer Service" that I almost filled my diaper.

Which reminds me, at this point in the festivities, I just happened to scroll down past his earliest reply to discover that the email thread continued. And you'll never guess what my eyes lit upon next. How about the kind of correspondence - between "Betty", one of this guy's customer service charges, and the manager himself (let's call him John - O.K., that's really his name) - that neither would ever want the customer reading:

"This could be another problem child, like Bobby?  Just forwarding this to you as an FYI…  Betty"

Oh, now I was loaded for bear.

I fired a warning shot back in John's direction which consisted of a preface to the body of my original email, the latter of which I copied into a new email and from which I took care to remove the offending links and image. In short, the preface warned John that the "problem child" had returned and was now going to be taking matters into his own childlike hands. I went on to state that I would be posting a rather scathing critique of the Fein organization on the company's social media page and that I would append to that, the product links and product image that had been the source of so much angst. Doing so would ensure the email's ability to to sneak past the watchful eye of the Fort Knox...I mean, Fein, email server. I also instructed "Dear John" to please navigate his way to his company's social media page and to my uploaded post so that he could locate and then follow the included links, the result of which would finally and quite gratifyingly consummate this brief but no less stupefying relationship. Did I mention that I also uploaded a snip of the most incriminating part of the email thread? Yup, I did that.

And that's where I left it. As chance would have it, the business day would come to an end without me having heard back from anyone at the Fein organization.

No matter.

Following some additional time spent on the interwebs searching, searching, searching, I managed to stumble upon the part number for the accessory I was curious about. I'll remind you here that this was the culmination of hours of unpaid work.

Where did I find the mystery number?

As luck would have it, I'm pretty web savvy, so I just happened to identify the part number as the series of numbers appended to the web address of the page on a retailer's website that's dedicated to the allusive accesory. Had the part number been listed on the page (where, of course, it belongs) I would have noticed it long before I'd reached out to Fein and I would have had something other than just an image to go on. But, then, I may not have had this story to tell. We'll never know.

With the part number in hand I quickly sent an abbreviated email to the Fein retailer to ask if they'd ever tried to fit the accessory (which I was finally able to describe with a valid part number) onto the latest version of the Multimaster. I expect I'll receive a reply sometime tomorrow. No thanks, mind you, to the company that manufactures the two products featured in this story. The End.

Actually, it's not completely "The End".

Before settling in to write this post, I searched the FOG for any mention of this accessory. I wasn't surprised, though, when nothing by way of a result was returned. After all, judging by how difficult is was for me to find anything out about it, I hardly expected any of my fellow Foggers to have already discussed it. Now, I should mention, that what appears to be an earlier and much clunkier version of this accessory was mentioned a couple of times in the past. But since the "new" version looks like it might secretly be compatible with the latest MultiMaster and maybe the Vecturo too (and because the "clunkyness" problem seems to have been addressed), I though it warranted its own post. So, here goes:

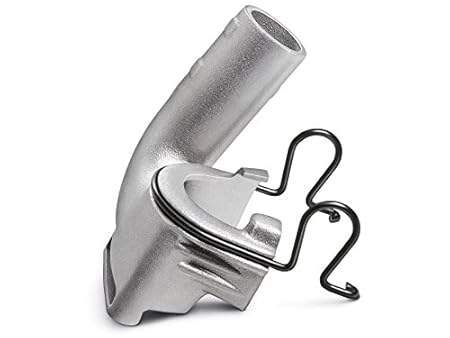

Has anyone ever held the following part in their hands and tried to install it on the latest iteration of the MultiMaster or on the current version of the Vecturo?

[attachimg=1]











Here's the "clunky" version I referred to earlier:



And here's what appears to be another iteration of the same version:



And before anyone queries....yes, I'm aware of the forthcoming cordless Vecturo and yes, I'm also aware of its updated (and very effective looking) dust collection attachment. Also, yes, I know that Fein manufactured the existing Vecturo and that it also will be manufacturing the soon to be released cordless version. Hence why I'm asking about the compatibility of this one accessory between these various makes and models.

Edit - The part number for the (apparently) new bolt-on version of the dust shroud is 32133021010.


Attachments

  • Fein Dust Collection Shroud.jpg
    Fein Dust Collection Shroud.jpg
    33.6 KB · Views: 2,525
Hi,

Sorry, but I chose to not read the „story“ and only focused on the question about the dust extraction attachment. [emoji56]

The first one you are showing (without the spring clip) is the DE unit for the current Fein SuperCut!
This one, I have for my Cordless SuperCut AFSC 18.

If you need any measurements etc. Let me know, I can do this over the weekend.

The one you are showing later (with spring clip) is, to my research, the „old SuperCut“ version (hence, this could/should fit the Vecturo, which should basically be an old SuperCut.

The Multimaster cordless has no dust extraction, if I recall correctly.
The Multimaster corded has a tube that runs in the underside an has a ring around the tool/blade holder. (Optional accessories).

If you see pictures of the cordless Feins, they are easy to distinguish:
- Multimaster AFMM18: speed dial on the back, in line with the switch, but just before/above the battery
- SuperCut AFSC18: speed dial on the left hand side of the tool, when viewed from above, also next to the battery.

Hope this helps.

Let me know what I can do to end your odyssey. [emoji6]

grobkuschelig said:
The Multimaster corded has a tube that runs in the underside an has a ring around the tool/blade holder. (Optional accessories).
Which is, given I reall the manual on my multi master correctly, for use with the sanding foot and, given I correctly recall the experiment I made with it, not that useful (to put it mildly) when used with a blade.

I read the story, although I am not sure what your question was to them.
I learned long ago that almost all companies do not allow links and attachments in emails. The reason is security.

You could replace Fein with the name of any big company & the story would be the same when it comes to customer service. All of them talk that they have great customer service, but they do not.

As for the derogatory comments in the email, that should not have happened, but it does in all businesses, even Festool, but it should have never have been put in writing. You are dealing with humans. If you think it is bad now, just wait until AI
Festool is a unique company when it comes to customer service & has spoiled their customers.

I have and use the attachment shown.  I bought it from Beaver tools not long after Toolnut offered the Fein Supercut on sale in a systainer.  The two Supercuts are the older ones, not the new blade capture kind.  I also have an older Multimaster and it does not fit that tool.  I use it for making drywall cuts and it retrieves probably 90% of the dust created.  I used it last in my kitchen in a french door retrofit.  It worked fantastic for keeping the mess to a bare minimum.  The dust that did escape was heavy enough that it fell straight down and did not float around the room.

JD2720 said:
I read the story, although I am not sure what your question was to them.
I learned long ago that almost all companies do not allow links and attachments in emails. The reason is security.

You could replace Fein with the name of any big company & the story would be the same when it comes to customer service. All of them talk that they have great customer service, but they do not.

As for the derogatory comments in the email, that should not have happened, but it does in all businesses, even Festool, but it should have never have been put in writing. You are dealing with humans. If you think it is bad now, just wait until AI
Festool is a unique company when it comes to customer service & has spoiled their customers.

Simple, "Do these two components mate together?". The response? Bewilderment followed by crickets.

Given how 'hot' dust collection is right now; and given that the MM is seriously lacking in this department; and given that Fein produces these two components; and, one would think, is familiar with each (and therefore should have foreseen the question); the dear-in-in-the-headlights response that I received was as humorous adn frustrating as it was so indicative of the continued failure of this company to a) provide it's associates with what they need to properly do their jobs and/or b) employ people who are up with the times and/or able to think outside of the box. Honestly, the first time my eyes came to rest on the two-bolt dust shroud - literally in the millisecond that followed - my thoughts went immediately to, "hmm, I wonder if this might bolt onto the MM?" I can't be the first person to have this totally unoriginal thought. And I don't even work for the manufacturer!

I've never really seen a customer service employee of a company of that size with more than cursory knowledge of the stuff they sell. If you're lucky they know who to direct you to. Your best bet is usually a passionate well informed retailer, or at least it is in my experience. My commisserations for your frustrating experience though.

[member=63474]grobkuschelig[/member] - Thank you for the offer! Yes, if you would, please provide the center-to-center measurement (in mm) of the two threaded accessory mounting inserts in the head of your SuperCut. Also, please measure the circumference of the SuperCut (in the two locations shown below).

Here are the same measurements for the MM:

[attachimg=1]

That's a freehand center-to center measurement of 22.27mm

Smaller circumference = approximately 195mm

[attachimg=2]

Larger circumference = approximately 300mm

[attachimg=3]

And here are some photos just showing the various profiles of the MM, for visual comparison's sake:

[attachimg=4]

[attachimg=5]

[attachimg=6]


Attachments

  • Fein MM ctr_to_ctr RESIZED.JPG
    Fein MM ctr_to_ctr RESIZED.JPG
    106.6 KB · Views: 1,658
  • Smaller circ RESIZED.JPG
    Smaller circ RESIZED.JPG
    110.9 KB · Views: 1,726
  • Larger circ RESIZED.JPG
    Larger circ RESIZED.JPG
    110.8 KB · Views: 1,710
  • Profile 1 RESIZED.JPG
    Profile 1 RESIZED.JPG
    108.6 KB · Views: 1,720
  • Profile 2 RESIZED.JPG
    Profile 2 RESIZED.JPG
    108.1 KB · Views: 2,632
  • Profile 3 RESIZED.JPG
    Profile 3 RESIZED.JPG
    93.2 KB · Views: 1,641
“...yes, I'm aware of the forthcoming cordless Vecturo and yes, I'm also aware of its updated (and very effective looking) dust collection attachment.”

I’m not...what’s the skinny on the cordless Vecturo with dust collection? And if you’ve seen this dust collection attachment, can you post a picture?

And what’s the part number for that Fein adapter that you finally found in a web address?

[member=68205]JPCleary[/member] - re: the forthcoming cordless Vecturo - which folks are saying will entirely replace any corded version (IOW the corded Vecturo has been discontinued - hence the reduced pricing all over the place) - read the following:
http://festoolownersgroup.com/festo...ding-ctm-midi-and-kapex-updates-among-others/

Or just skip ahead to the first post with photos:
http://festoolownersgroup.com/festo...pex-updates-among-others/msg567970/#msg567970

Oh, yea, the part number. Sorry about that! It's 32133021010.

You can also locate it by doing a websearch for "Fein suction" which, as a matter of fact, is the name for the part. Not real intuitive, I know.

TinyShop said:
Here are the same measurements for the MM:
That's a freehand center-to center measurement of 22.27mm
Smaller circumference = approximately 195mm
Larger circumference = approximately 300mm

Hi TinyShop,

Sorry it took a little longer...

The hole distance seems to be the same. I would have guessed so as well, since it keeps compatibility with the Fein depth stop etc. across their range.
So it is something above 22.x mm

For the smaller circumference, I measure roughly 190mm.
I guess the „head assembly“ is the same to keep the parts here as well.

For the larger circumference, I measure roughly 230mm.
Previously in my reaseach I also found that the SuperCut has a different shape on the body.  (More compact with the brushless motor?)
It does not feature the „lump“ the Multimaster has.

I‘ll add some more pics as well...


One huge, or better tiny advantage of the SuperCut is:
It also runs on the Fein 12V range (the brushless motor is a „multivolt“ capable unit, running on 12V, 14.4V and 18V batteries).

This can make it a nice compact and light unit, if needed.

Comes in at just 1.371 kg. :)

In the last post, it was pictured with the 5ah battery, see below for the 2.5ah 12V.


[member=63474]grobkuschelig[/member] - Thanks so much! Your info pretty much validates the assumption I have that the bolt-on dust shroud will fit the MM. I think we can now confidently assume as much given that a) the bolt hole patterns are identical, b) the shroud only covers the head of the tool and c) that the heads of the tools are identical. You've been a great help and between the two of us we've supplied far more in the way of concrete data and basic knowledge than I've received from FEIN U.S.A., the latter of whom, I should point out, still hasn't bothered to reply. I should also mention that, with one exception, none of the dealers that list this dust shroud for sale on their websites have yet bothered to reply either. The one who did respond was unable to weigh in because they are presently out of stock of both the MM and dust shroud. This particular dealer did take it upon themselves to contact FEIN Canada (this dealer happens to be located in Canada) but they too were unable to answer this basic question. Good grief!

Which just reinforces how pleased and appreciative I am with the various interactions that I've had over the years with Festool. If only every tool company out there was as responsive, knowledgeable and willing to assist as they are!

TinyShop said:
[member=63474]grobkuschelig[/member] - Thanks so much! Your info pretty much validates the assumption I have that the bolt-on dust shroud will fit the MM. I think we can now confidently assume as much given that a) the bolt hole patterns are identical, b) the shroud only covers the head of the tool and c) that the heads of the tools are identical. You've been a great help and between the two of us we've supplied far more in the way of concrete data and basic knowledge than I've received from FEIN U.S.A., the latter of whom, I should point out, still hasn't bothered to reply. I should also mention that, with one exception, none of the dealers that list this dust shroud for sale on their websites have yet bothered to reply either. The one who did respond was unable to weigh in because they are presently out of stock of both the MM and dust shroud. This particular dealer did take it upon themselves to contact FEIN Canada (this dealer happens to be located in Canada) but they too were unable to answer this basic question. Good grief!

Which just reinforces how pleased and appreciative I am with the various interactions that I've had over the years with Festool. If only every tool company out there was as responsive, knowledgeable and willing to assist as they are!
The aluminum dust collection bolt on adapter only fits the Supercut. I tried it on the Multimaster, different head shapes prevents it.

Sent from my SM-G960U using Tapatalk


The.Handyman said:
TinyShop said:
[member=63474]grobkuschelig[/member] - Thanks so much! Your info pretty much validates the assumption I have that the bolt-on dust shroud will fit the MM. I think we can now confidently assume as much given that a) the bolt hole patterns are identical, b) the shroud only covers the head of the tool and c) that the heads of the tools are identical. You've been a great help and between the two of us we've supplied far more in the way of concrete data and basic knowledge than I've received from FEIN U.S.A., the latter of whom, I should point out, still hasn't bothered to reply. I should also mention that, with one exception, none of the dealers that list this dust shroud for sale on their websites have yet bothered to reply either. The one who did respond was unable to weigh in because they are presently out of stock of both the MM and dust shroud. This particular dealer did take it upon themselves to contact FEIN Canada (this dealer happens to be located in Canada) but they too were unable to answer this basic question. Good grief!

Which just reinforces how pleased and appreciative I am with the various interactions that I've had over the years with Festool. If only every tool company out there was as responsive, knowledgeable and willing to assist as they are!
The aluminum dust collection bolt on adapter only fits the Supercut. I tried it on the Multimaster, different head shapes prevents it.

Really? Apart from the head on the SC maybe having a slightly rounded "nose", they look identical to me:

index.php




Can you please verify that the MM that you tried this on was a 350 QSL?

Can you please verify that the SC that you used is the same version shown in the images above?

Was the shroud too large for the MM?  If not, did the head of the MM not fit through the opening in the shroud? Would a little material removal (from the shroud) or adding something to it allow it to fit? I'm just trying to picture what the issue of incompatibility is.

I look forward to your reply. :)

Your post reminds me of so many customer service interactions I've had with companies. It's just terrible. While I would like to blame the customer service person on the other end that's probably not the real problem. Yes they should be more knowledgeable but I think that's more of a company issue rather than an employee issue. Seems like they train people to try to get consumers not to use customer service. Your dealings with Fein remind me of trying to deal with Sony. What a complete waste of time.
On the flip side we've got Festool Lebanon which rocks.
On a side note, if anyone is looking to buy something from Fluke, Flir or Testo (and I have stuff from all of them) I'd recommend seriously going with Flir. I like their stuff anyway. However, I had an issue with a Flir tool last year and they were rockstars about it. I was impressed. They handled it and their staff knew the product line.
Back on topic, I have the older Fein MM with the black plastic shroud thing, pretty much useless. Too bad the shown one doesn't fit the older model.

Brief update:

It's now almost the end of February and I'm no closer to an answer then I was back when I first reached out to Fein on the 31st of January. For the last couple of weeks I've been waiting in vain for some news promised to me by the Customer Service Manager (who plays a starring role in my original post). Last I heard, "...one of my technician [sic] is testing a few options. We should have a response for you next week." That was on the 8th and it's been radio silence ever since. I did hear back from most of the retailers I reached out to (who have this part for sale on their respective websites) but not a one was able to provide an answer. I also reached out again to the one Canadian retailer who was the most helpful of all but he still doesn't have stock of the two items so is still unable to test my hypothesis.

Sigh.


TinyShop said:
The.Handyman said:
TinyShop said:
[member=63474]grobkuschelig[/member] - Thanks so much! Your info pretty much validates the assumption I have that the bolt-on dust shroud will fit the MM. I think we can now confidently assume as much given that a) the bolt hole patterns are identical, b) the shroud only covers the head of the tool and c) that the heads of the tools are identical. You've been a great help and between the two of us we've supplied far more in the way of concrete data and basic knowledge than I've received from FEIN U.S.A., the latter of whom, I should point out, still hasn't bothered to reply. I should also mention that, with one exception, none of the dealers that list this dust shroud for sale on their websites have yet bothered to reply either. The one who did respond was unable to weigh in because they are presently out of stock of both the MM and dust shroud. This particular dealer did take it upon themselves to contact FEIN Canada (this dealer happens to be located in Canada) but they too were unable to answer this basic question. Good grief!

Which just reinforces how pleased and appreciative I am with the various interactions that I've had over the years with Festool. If only every tool company out there was as responsive, knowledgeable and willing to assist as they are!
The aluminum dust collection bolt on adapter only fits the Supercut. I tried it on the Multimaster, different head shapes prevents it.

Really? Apart from the head on the SC maybe having a slightly rounded "nose", they look identical to me:

index.php




Can you please verify that the MM that you tried this on was a 350 QSL?

Can you please verify that the SC that you used is the same version shown in the images above?

Was the shroud too large for the MM?  If not, did the head of the MM not fit through the opening in the shroud? Would a little material removal (from the shroud) or adding something to it allow it to fit? I'm just trying to picture what the issue of incompatibility is.

I look forward to your reply. :)
I have the latest 18v brushless Supercut with isolated head. I have the aluminum bolt on dust collection shroud. Works great.

I bought the latest 350QSL from a local HD to see if it would fit because it to has bolt mounting location below. The dust collection shroud did not fit. The heads are enough of a different shape that it would not slide on. I did not look close for ways to modify.

Sent from my SM-G960U using Tapatalk
