OF1400 guide rods

[Euclid]

If anybody knows - or has a moment to spare to take a measurement - could you please tell the guide-rod spacing (centre to centre if poss - ie how far apart they are) when fitted to the OF1400?
And are the rods 8mm or 10mm diameter?

(I have a half-formed idea of using the guide rail attachment for a somewhat different purpose. It might be a lot easier to adjust my embryonic design to suit, rather than make something. The micro-adjust might be overkill but could be a nice addition. It's to guide a base I want to make for a lightweight sheet metal nibbler.)

Thanks very much!



[Euclid]

Ok, I've found an earlier thread in which it's said they are 8mm diameter;
now I just need the spacing...



[GoingMyWay]

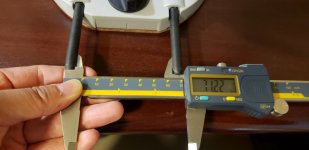

I measure 71.22mm in between the posts on my OF1400 and about 79.37mm center to center.

[attachimg=1]

[attachimg=2]



[hdv]

I'd say 79mm. I am trying to upload photos, but am getting errors.



[hdv]

OK, here's detail left. It seems my uploads are too slow...  [scared]



[hdv]

And the detail of the right side.



[Cheese]

If you measure across the outside of the rods I get 86.60 mm.
Minus the nominal rod diameter of 8 mm the center-to-center distance should be approximately 78.60 mm.



[Euclid]

Thank you all three kindly - that's just what I needed - and accurate enough for me to buy the guide attachment and build around it. The spacing is appropriate for what I had in mind.
If my project proceeds with any degree of success or usefulness, I'll report back!



[Coen]

And on the other side?

If you measure with them sticking out that far, you might get a somewhat false measurement, especially since one of the rods is only clamped in one spot.



[Bob D.]

Found this doing a Google search:
https://www.festoolownersgroup.com/...-for-festool-1400-router/msg441063/#msg441063
