Sapele and Lacewood towered filing cabinet and adjustable bookshelf

ear3

Member
Joined
Jul 24, 2014
Messages
4,285
Location
New York, NY

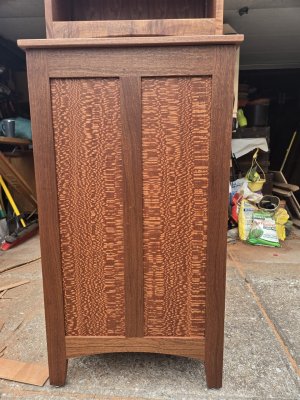

I stumbled across this beautiful wood a few months ago at a lumber place down in the Rockaways. It's called lacewood, which describes the spiderweb grain when the board is typically quartersawn. But when it is flat cut, you get this spotted leopard effect from the full exposure of the medullary rays. Anyway, I decided to use it as paneling for this piece of furniture I just finished for my office.

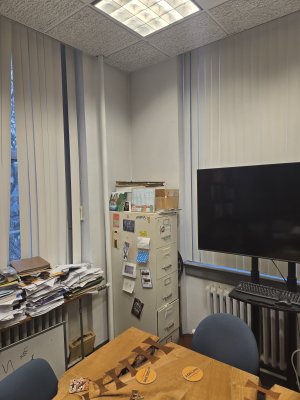

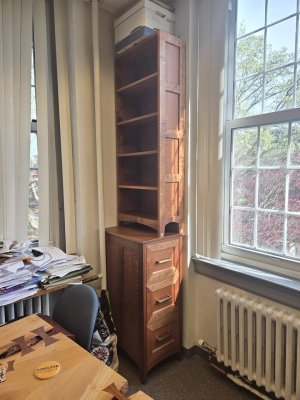

I have one corner of my office that is not occupied by something I built. That's where I positioned a filing cabinet, which, even in the era of electronic record keeping, is still useful for more important stuff.

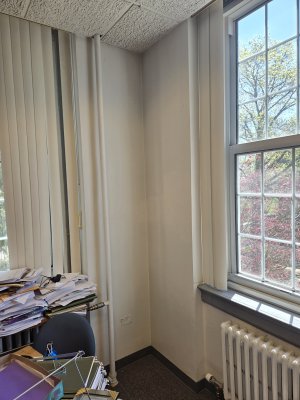

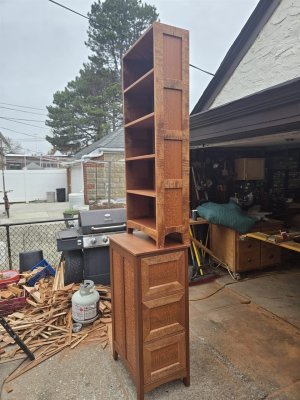

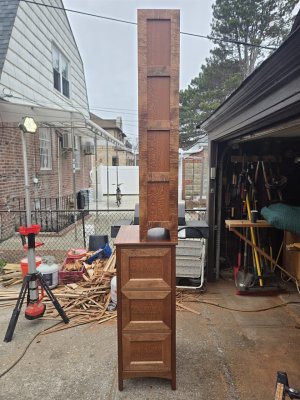

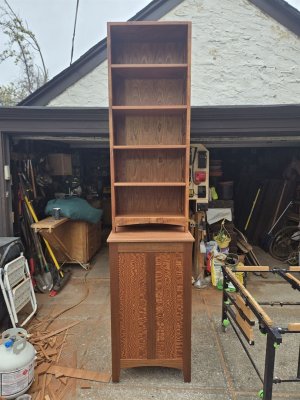

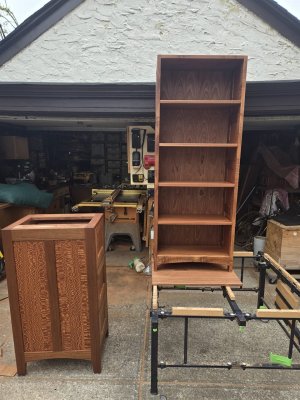

The challenge of that space is the steam pipe that juts out maybe 4 inches from the side wall and 18 inches from the backwall, which places all sorts of restrictions on what might fit there. I still wanted to have a filing cabinet, but not give up all of that usable vertical space (ceilings are about 10ft tall), so I decided to do a towered construction, with a bookshelf stacked on top of a filing cabinet, which would be removable for transport and installation. This is essentially the same design I used for an earlier piece of furniture that is also in my office.

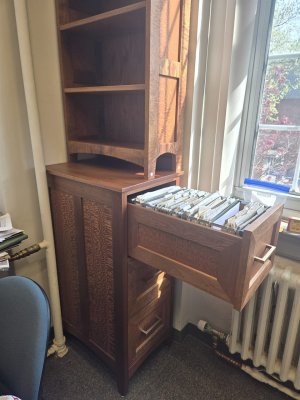

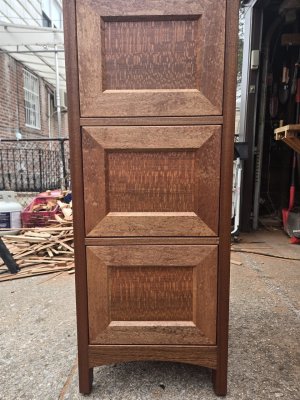

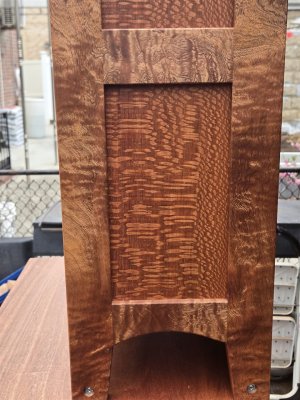

Very happy with the results of the Sapele/Lacewood combination, which is finished in clear matte Osmo. I found a few pieces of Sapele with more interesting grain, so I featured them on the more visible side of the bookcase and the drawer fronts.

20260413_093841.jpg 20260413_093910.jpg

Last edited:

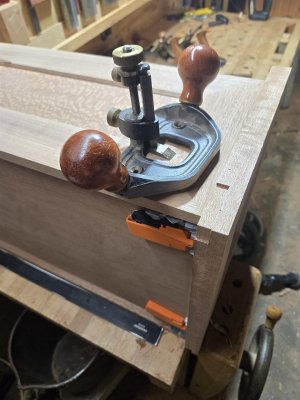

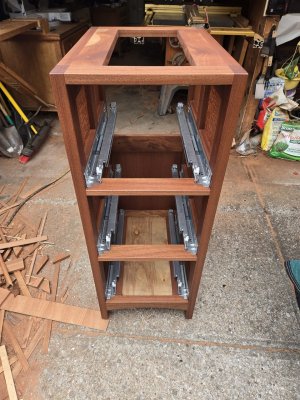

This is the first time I've used Blum undermount slides for a project. They are great once installed, but were a bit tricky to fine tune. They require precise dimensioning of the drawer box, and since I wasn't doing a false front, and fully inset the drawer, I had to rout out by hand some channels on the drawer face to fully clear the slides.

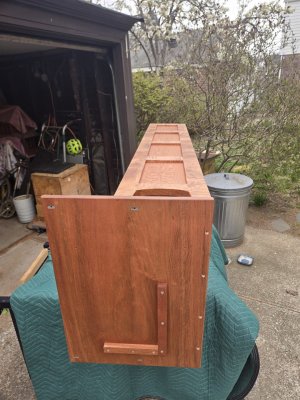

To do the stacking, I attached the bookcase to the filing cabinet top using DF500 connectors and screws, and then tacked some spacers on the underside so that it would center on the filing cabinet when nested.
