OF1400 Router round base

[MacBoy]

Yes, the dimensions that I measured are within .01mm of what @4nthony posted, but in this application, only 2 of them matter. The ones at the top of that diagram are all we need here. Those are the ones I was saying are off center.
They are bigger holes (6mm threads) and do not contribute to holding the original base in place.
The OF1010 has similar holes, thought they are closer together and centered.

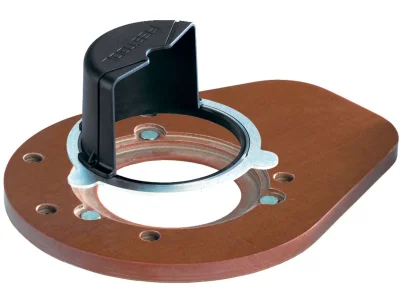

The combo/adaptor only uses these 4 holes.
That's kind of the beauty of this, you don't have to remove any of the original tiny screws.

Great results!

I checked on Shaper Hub and could not find the files.

When you have a moment, could you post the link please. Thank you!



[Crazyraceguy]

Great results!

I checked on Shaper Hub and could not find the files.

When you have a moment, could you post the link please. Thank you!

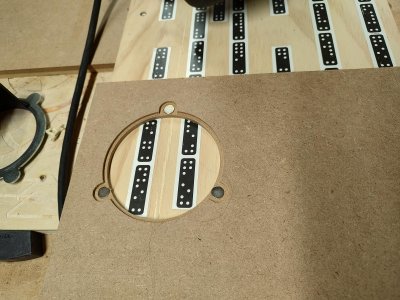

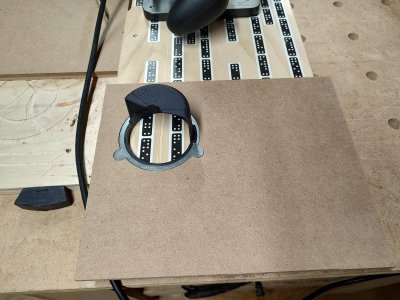

Sure. It will work exactly as drawn. The only thing you really need to do is adjust the depth of the counterbores, depending on the thickness of material you use. It might be a good idea to sneak up on the diameter of the bushing hole too. The fit is very important.

Round sub base Created by Crazyraceguy — Festool OF 1400 and OF1010 round sub base.

hub.shapertools.com



[MacBoy]

Sure. It will work exactly as drawn. The only thing you really need to do is adjust the depth of the counterbores, depending on the thickness of material you use. It might be a good idea to sneak up on the diameter of the bushing hole too. The fit is very important.

Round sub base Created by Crazyraceguy — Festool OF 1400 and OF1010 round sub base.

hub.shapertools.com

Thank you!

For the Shaper Origin, which cutter would you recommend for 3/8” acrylic?

I’m “outsourcing” this job to several buddies who’ve not yet put their Shaper Origin onto a finalized project. I wanna guide them with your direct experience on this model.
